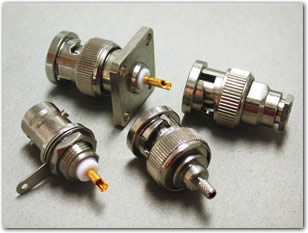

BNC Connectors
BNC Connectors

Features & Benefits
  • Bayonet coupling mechanism provides quick mating and unmating
    		•
  • 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
    		•
  • 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating
    		•
  • Three grades of connectors are available for military, industrial and commercial applications
    		•

    Applications
  • Antennas
    		•
  • Automotive
    		•
  • Base Stations
    		•
  • Broadcast (75 O)
    		•
  • Cable Assemblies
    		•
  • Cable Modems
    		•
  • Components
    		•
  • Computers/LANs
    		•
  • Instrumentation
    		•
  • Oscilloscopes
  • Medical Equipment
    		•
  • Mil-Aero
    		•
  • Radios
    		•
  • Satcom
    		•
  • Surge Protection
    		•
  • Telecom

    • 50 Ω BNC Specifications
    Electrical
    Impedance 50 O nominal
    Frequency Range 0-4 GHz with low reflection
    Voltage Rating 500 volts peak
    Dielectric Withstanding Voltage 1,500 volts rms
    VSWR M39012 straight connectors: 1.3 max 0-4 GHz
    M39012 right angle connectores: 1.35 max 0-4 GHz
    MIL-C-39012 Contact Resistance Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ
    MIL-C-39012 Insulation Resistance 5,000 mΩ
    MIL-C 39012 Braid to Body 0.1 mΩ
    MIL-C-39012 RF Leakage -55 dB min at 3 GHz
    MIL-C-39012 Insertion Loss 0.2 dB min at 3 GHz
    Mechanical
    Mating 2-stud bayonet coupling per M39012
    Braid/Jacket Cable Affixment All crimps are hex braid; clamps are screw-thread net and braid clamp
    Center Conductor Cable Affixment Crimps are crimp or solder; all other are solder only
    Captivated Contacts All crimps unless specified otherwise
    Cable Retention Crimps: 20-100 lbs; All others: 30-70 lbs
    Material
    Male Contact Brass
    Female Contact Beryllium copper or phosphorous bronze, silver or gold-plated
    Other Metal Parts Brass, nickel finish; M39012 is silver finish
    Insulator TFE, copolymer of styrene, glass-TFE (hermetically sealed)
    Crimp Ferrule Copper/brass
    Environmental
    Temperature Range TFE insulators: - 65°C to + 165 °C, Copolymer of Styrene: - 55°C to + 85°C
    Weatherproof Clamps with clamp gaskets; crimps with heat-shrink tubing
    Mermetic Seals Pass helium leak test of 2x10 -8 cc/second
    Shock MIL-STD-202 method 202
    Vibration MIL-STD-202 method 202, test condition D
    Moisture Resistance MIL-STD-202 method 106
    Corrosion MIL-STD-202 method 101, test condition B
    Temperature Cycling MIL-STD-202 method 102, test condition D
    Altitude MIL-STD-202 method 105, test condition C
    Military
    MIL-C-39012 Where applicable

    Note: These characteristics are typical but may not apply to all connectors.
